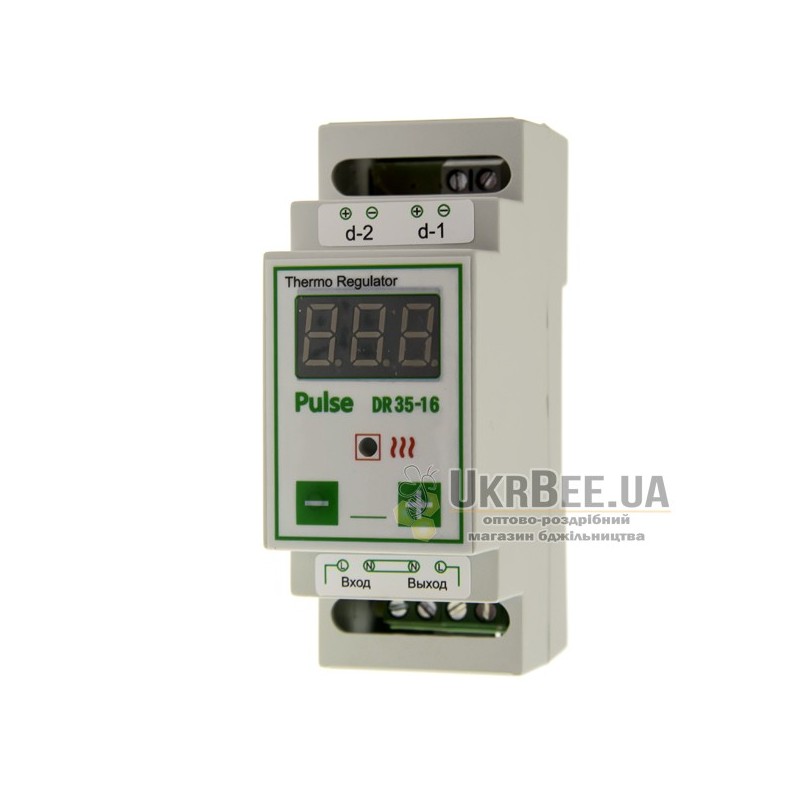

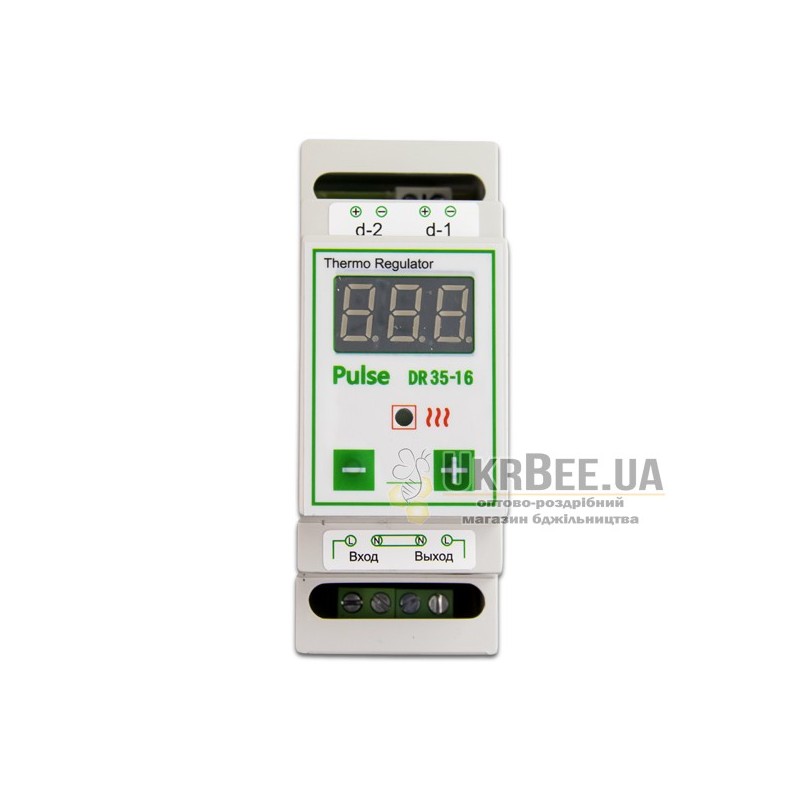

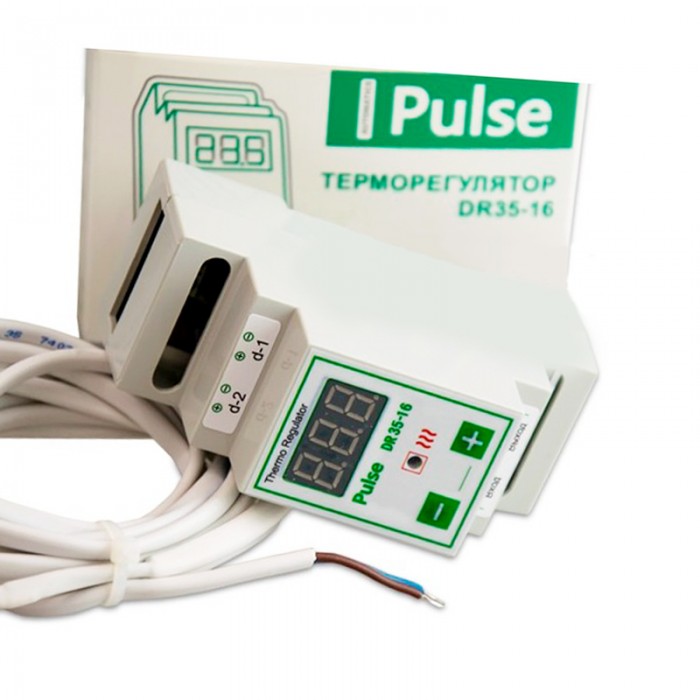

The thermostat for the heater hive Digital Pulse DR35-16 on DIN-rail
Automatic electronic device to control the temperature in the room. Lets just keep the thermal component of the microclimate in the hive. Parameters entered by the user with an intuitive interface with buttons and LCD digital display.
provides precise temperature maintenance within the prescribed limits. For convenience equipped with a digital display, which displays the current temperature.
temperature sensing element is installed in a free from the direct impact zone heaters and thermostat provides information on the temperature in the area of the same thermocouple. Based on this thermostat controls the heating devices in the room. A distinctive feature of these thermostats are accurate temperature measurement.
Specifications:
- Temperature range: -55 C to +125 C
- Maximum load current: 16A
- Maximum power load: 3 kW
- Supply voltage: 220V, 50Hz
- Sensor Cable Length: 2 m
- Installation size: 90h63h35 mm
- Degree of protection: IP 20
- Power consumption: less than 1W
3 years warranty.
Manufacturer: Ukraine.
