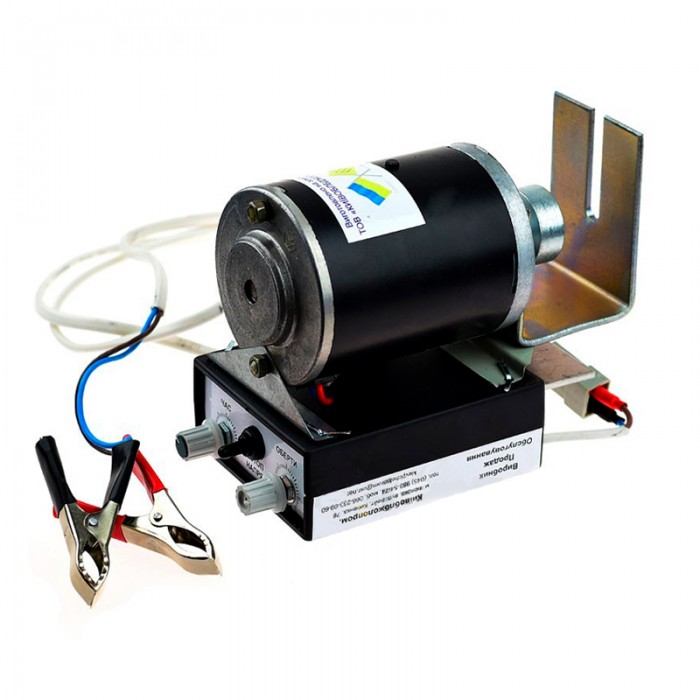

Electric honey to
Electric honey – modern equipment mehanizuye honey pumping process and increases productivity.
electromechanical actuators used for the rotation mechanism for different types of honey. Due drive rotation speed can put honey, adjust the rotation direction and cassettes. Pumping honey from honeycomb frames of honey to use electric drive passes quickly, efficiently and requires virtually no exercise of the beekeeper.
Handling electric
Before installing on an electric wire medogonku remove from her hand and insert the drive shaft in the bracket with ball. Secure the pins and screws, then replace the shaft pulley bracket, fixing nut. In place of the gear motor to attach the electric center honey and put on the belt pulleys. Warning Belt not much pull!
To fully cooked honey, secure electric bolt and nut.

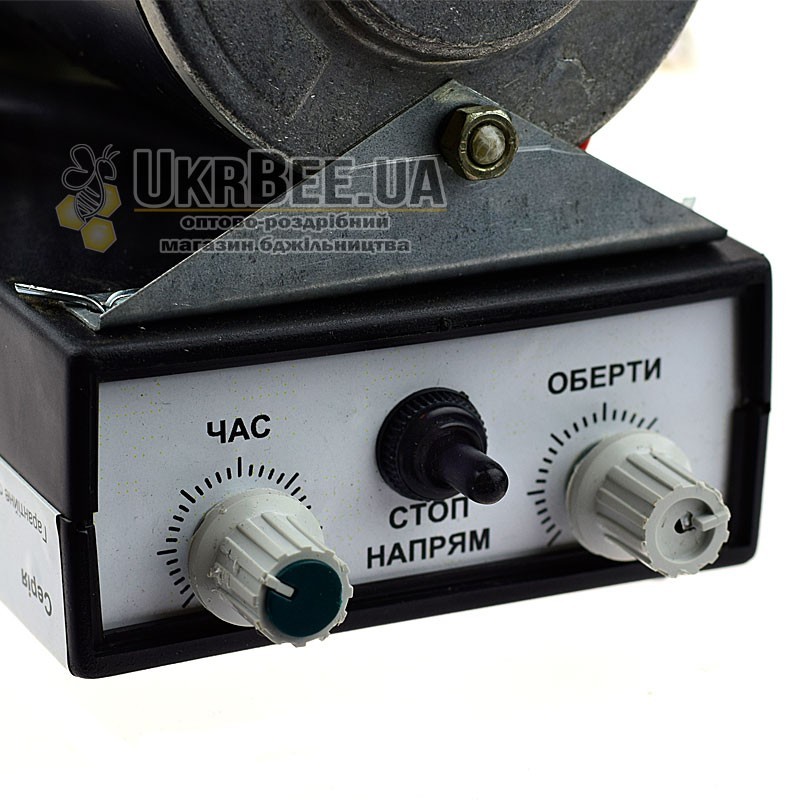

The reason for honey is equipped with 3 controls:
- Tumbler: with a “stop” and management revolutions in the left or right.
- Timer: honey exhibits the work
- momentum: to adjust the rotation speed cassettes
Start with honey always carried off. So you should check that the toggle switch is in the middle position. Regulator “Time” exposed length speed cassettes, then medogonku can run in place and choose the direction and speed. Honey gently and gradually builds momentum exhibited on and off automatically after a specified time ascent.

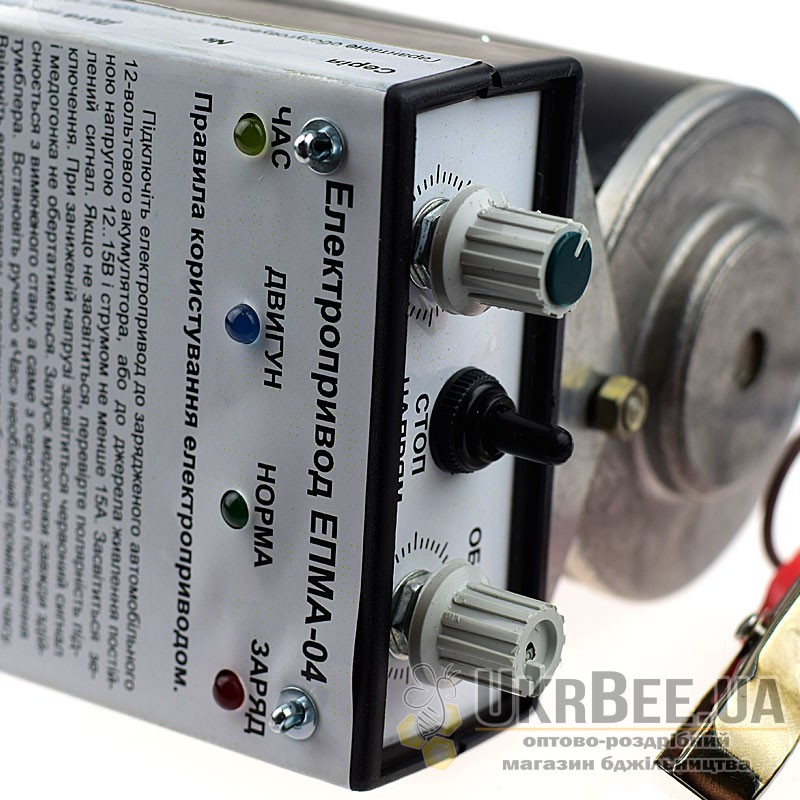

Serviceability electric drive can be controlled on four colored indicators:
- Yellow – lit during the time of rotation cassettes
- blue – indicates current flow through the motor
- Green – glows when connected to a power source and indicates the allowable stress.
- red – glows when the voltage is below normal
Recommendations for use. Electric wires can be connected to a power source with constant voltage 12V-15A 15Vz maximum force. Warning! Connect mechanism to chargers strictly prohibited.

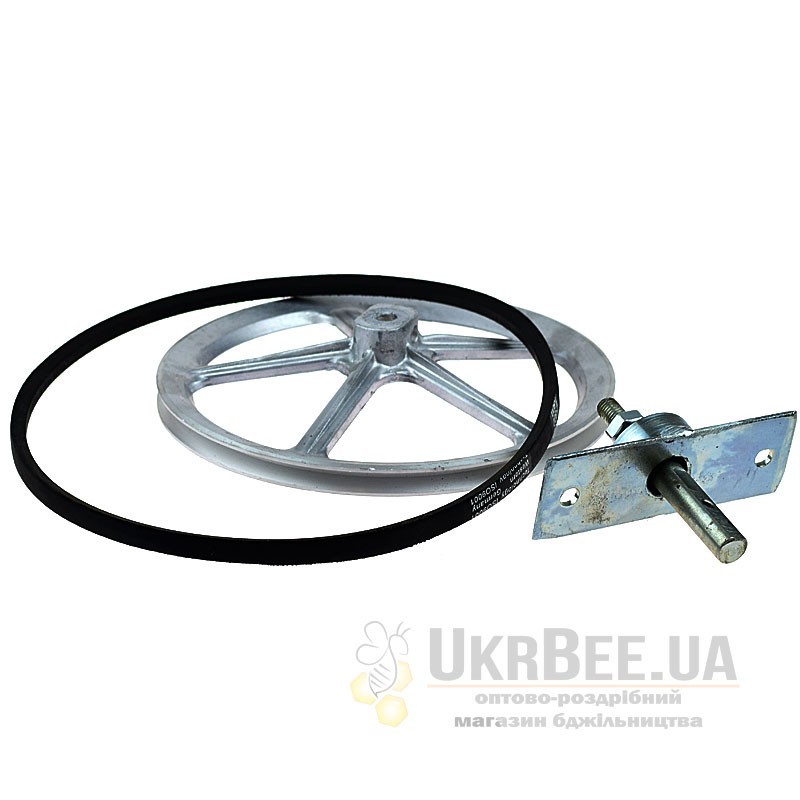

Ingredients
- Electric
- pulley axis honey
- belt
- with the bearing bracket
Techno chna characteristics
Manufacturing: Ukraine
Supply voltage: 12 V
Power consumption: 1.2 A / h
rev range: 60-120 / min.
Timer operation: 1-10 min
Major revolutions: in hours / counterclockwise
mode: long
